HZS60 60 m3/h Belt Type Concrete Batching Plant, Twin Shaft Mixer Batching Plant
HZS60 Belt Type Concrete Batching Plant is mainly composed of 5 major systems, such as JS1000 twin shaft concrete mixer, PLD1600 batching machine, cement silo, control system and relevant equipment.
HZS60 Belt Type Concrete Batching Plant is simple in structure, easy installation and disassembling, convenient construction, widely applied to various big and middle industry and civil construction of bridge, highway, water conservancy project and wharf and so on.
Main Parameter Information of HZS60 Belt Type Concrete Batching Plant
| Model | HZS60 |
| Productivity | 60 m³/h |
| Type of Mixer | JS1000 |
| Mixing Volume | 1000 L |
| Feeding Way | Belt Type |
| Discharge Height | 4.1 m |
| Aggregate Bins | 3/4 |
| Aggregate Weighing Range | 1000-2000 kg |
| Cement Weighing Range | 600 kg |
| Max. Aggregate Size | 80/60 mm |
| Total Power | 56.55 kw |
| Total Weight | 45 T |
Mixing System of HZS60 Belt Type Concrete Batching Plant
JS1000 twin shaft compulsory concrete mixer by feeding, mixing, the composition of the discharge, water, electric, cover, chassis, legs and other parts. Mixing system is directly connected by a planetary reducer, open gears, mixing tank, stirring device, oil installations and other components.
Batching System of HZS60 Belt Type Concrete Batching Plant

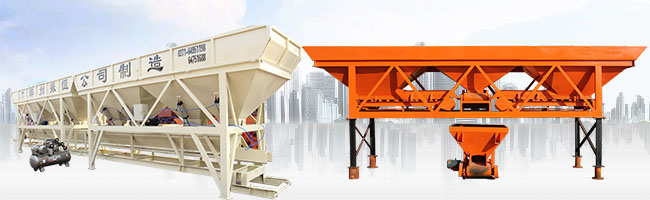

PLD1600 with 3bins or 4bins batching machine, The optimum vibration lining panel structure with large inclined angular and concentric needle arch design, adjustable pressure reducing plate ensures loading efficiency, stable performance, safe production and convenient use.
Weighting System of HZS60 Belt Type Concrete Batching Plant
In accordance with the national standards of measurement and weighing, sand and gravel from the loader into the concrete batching machine, after measuring, aggregate will be conveyed by belt conveyor(or hopper hoist) into the middle of the mixer located in the middle of warehouse.
Weighing system adopts S-shaped sensor and three-point mounted weighing for fast weigh and high accuracy.
Cement Silo of HZS60 Belt Type Concrete Batching Plant
The cement silo is stored with powder materials, such as cement, fly ash, etc. The powder is communicated with the ash inlet pipe through the bulk cement delivery truck and is directly fed into the powder bin to be stored, finally conveyed to concrete mixer by screw conveyor.
Conveying System of HZS60 Belt Type Concrete Batching Plant
1)Scientific design, easy to maintain and durable
2)The belt conveyor allows the friction between the conveyor belt and the transmission wheel to prevent the conveyor belt from slipping while adjusting the effect of the change in conveyor belt length.
3)An emergency stop switch which located on the head and tail of the beltis used as a safety device while the conveyor belt is in operation. It can stop the belt from operating in the event of a failure or accident in the belt drive.
Control System of HZS60 Belt Type Concrete Batching Plant
Multiple securities, no–downtime, Self-developed production management and control system, plus the patent of fault warning, multiple guarantees to make your equipment never stop; Reports are automatically classified and summarized, and cloud data storage ensures clear data and convenient operation.
FAQ of HZS60 Belt Type Concrete Batching Plant
Q: Can you test our order before shipping?
Yes. All of our goods will test in factory before shipping to customer.
Q: How long it takes to do all the installation
It's at most 5days processing and manufacturing for single machine,for production line,at most 15days.
Q: Can we visit your factory?
Yes. You can visit our factory at anytime you want.
Q: Can you put our logo on the machine?
Yes,it is available.LOGO and color are usually as per customer's requirement.
Q: What’s the warranty time?
From the date of shipment, 1 year or 1500working hours, whichever comes first.
Q: What’s your payment term?
We accept T/T(30% down payment and balance before shipping) and L/C mostly, but if you prefer other payment terms please contact us for further information.
Q: How long is your delivery time?
Usually, it is 7-10 workdays if the goods are in stock, or it is 15-20 working days if the goods are not in stock, it is according to quantity.
